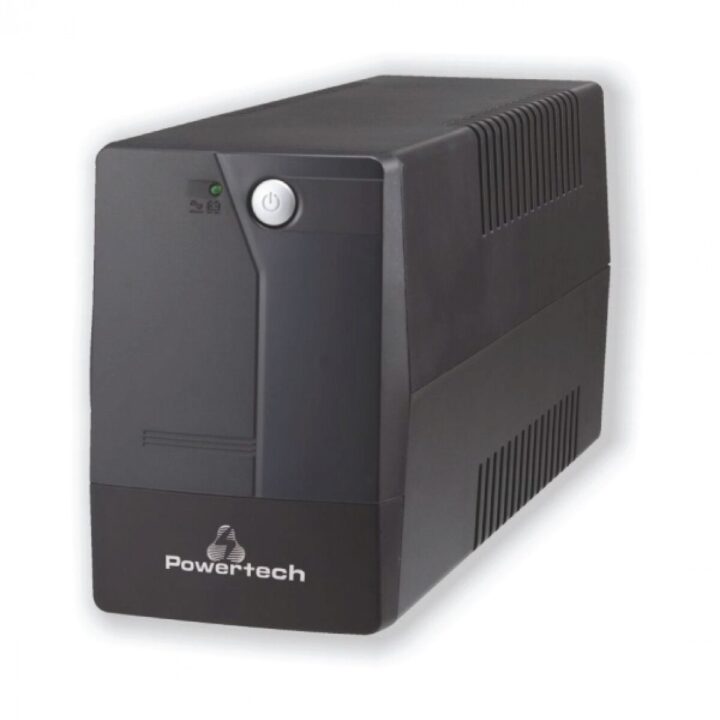

Powertech Ups Line Interactive 850va510w

Powertech UPS 850volt / 510
green

Model: PT-850

Capacity: 850 VA / 510 W

• Input

Voltage: 110/120 VAC or 220/230/240
VAC
Voltage Range: 81-145 VAC / 162-290 VAC
Frequency Range: 60/50 Hz
(auto sensing)

• Output

Frequency Range: (Batt. Mode) ±
10%
Waveform (Batt. Mode): 50 Hz or 60 Hz ± 1 Hz
Transfer Time: Typical
2-8 ms
AC Voltage Regulation Simulated Sine Wave

• Battery

Battery Type & Number: 12 V/7 Ah x 1 12
V/9 Ah x 1
Typical Recharge Time: 4 hours up to 90% capacity

•
Protection

Full Protection Overload, discharge, and
overcharge protection

•
Indicators

AC Mode Green lighting
Battery Mode Green
Flashing

• Alarm

Battery Mode Sounding every 10 seconds
Low
Battery Sounding every second
Overload Sounding every 0.5 second
Fault
Continuously sounding

• Physical

Dimension, D x W x H (mm) 279 x101 x142
Net
Weight (kgs) 4.2 4.9

•
Environment

Humidity 0-90 % RH @ 0- 40°C
(non-condensing)
Noise Level Less than 40dB
