Brateck Βάση τοίχου 37″-70″ 35Kg MAXVESA600x400

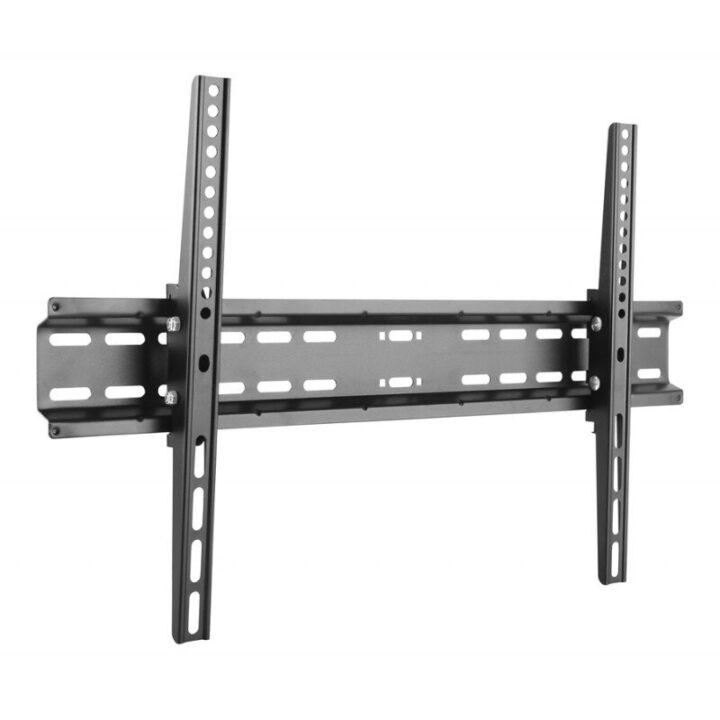

KL25-46T tilt wall mount is compatible with any 37″-70″ flat panel TV and the load-bearing up to 35kgs. Super Slim design sits just 50mm from wall to complement the sleek look of ultra-thin TVs.
Suited for VESA hole up to 600×400. Adjustable +5°~-10° tilting . It allows the TV to slide left and right on the wall plate, so it’s positioned exactly where you want it.
The power coating finish guarantees the durability and the simple construction is easy to install.

– Lateral shift brackets enable fast alignment
– Free-tilting design for multiple monitor viewing angles
– Installation is as easy as 1-2-3
– Slim design provides low profile

Περιεχόμενα συσκευασίας

– Βάση
– Βίδες
– Εργαλεία
– User manual

By Function	Tilting
By Mounting Pattern	Universal
Material	Steel
Pipe Size	No
Surface Finish	Powder Coating
Available Color	Black
Product Size	50x675x425mm
Suggested Screen Size	37″-70″
Installation	Solid wall, Double Stud
Rated Load	35kgs/77lbs
Strength tested	3 times approved
Max.Hole Pattern	630x405mm
VESA	200×200;400×200;300×300;400×400;600×400;400×300;300×200
Tilt	+5°~-10°
Profile	50mm
Bubble Level	No
Bubble Level mount	No
Anti-theft	No
Cable Management	No
Wall separated	No
Panel separated	Yes
AV Component Mount	No
Freely Tilting	No
Freely Height Adjustable	No
Motorized	No
Curved TV Available	NO
User Manual	Yes
Power Plug	NO
Magnetic	NO

Τοποθέτηση	Επιτοίχια
Μέγεθος Οθόνης	έως 70''
